Pneumatic Valve
Engineered for air-operated valve control and efficient automation in industrial processes.
MD Valves manufactures high-speed Pneumatic Actuated Valves engineered for rapid, reliable isolation and process regulation across demanding industrial piping systems. Powered by rack-and-pinion and heavy-duty scotch yoke pneumatic actuators, our valves provide dependable fail-safe automated switching with cycle speeds measured in milliseconds.
- Actuator Configurations: Available in both Double Acting (DA) and Spring Return / Single Acting (SR) fail-safe setups.

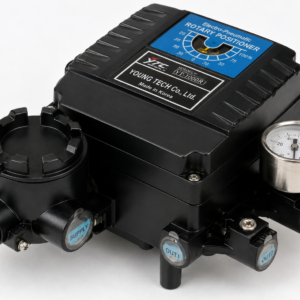

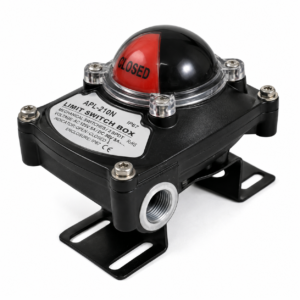

- Control Accessories: Integrated Namur solenoid valves, electro-pneumatic positioners (4–20 mA), and weatherproof micro-switch limit boxes.
- Rugged Metallurgy: Premium Stainless Steel (SS 304, SS 316, SS 316L) bodies built to resist aggressive chemicals and high pipeline pressures.
Pneumatic Valve
Technical Specifications – Pneumatic Valves
MD Valves pneumatic actuated valves are engineered for rapid-response quarter-turn isolation and modulating throttling in high-cycle industrial lines. Designed with heavy-duty rack-and-pinion actuators and high-integrity valve bodies, these units deliver safe, spark-free automated flow control that easily integrates with instrument air lines and centralized control panels.
The matrix below provides key technical specifications and operational parameters for quick engineering evaluation:
Parameter | Specification | Key Benefit |
Actuator Action | Double Acting (DA) & Spring Return (SR) | Reliable fail-safe (close/open) plant safety |
Air Supply Pressure | 3.0 Bar to 8.0 Bar Dry Instrument Air | High operating torque with fast stroke speed |
Material (MOC) | SS 304, SS 316, SS 316L, Cast Steel (WCB) | Corrosion resistance for harsh chemicals & steam |
Pressure Class | PN10, PN16, PN40, ANSI 150#, 300# | Robust performance under line pressure surges |
End Connections | Flanged, Screwed (BSP/NPT), Tri-Clamp, Welded | Universal compatibility with industrial piping |
Control Accessories | Namur Solenoid, Limit Switch Box, Positioner | Direct PLC communication and position feedback |
Sealing / Seats | Virgin PTFE, RPTFE, High-Temp PEEK | Bubble-tight Class VI positive shutoff |
Compliance Standard | ISO 5211 / API 598 / Namur VDI/VDE 3845 | 100% factory hydrostatic & seat tested |
